Name: Sapphire PURE AMD Radeon RX 9070 OC
Brand: Sapphire
SKU: 11349-02-20G

Sapphire PURE AMD Radeon RX 9070 OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9070 > Sapphire PURE AMD Radeon RX 9070 OC

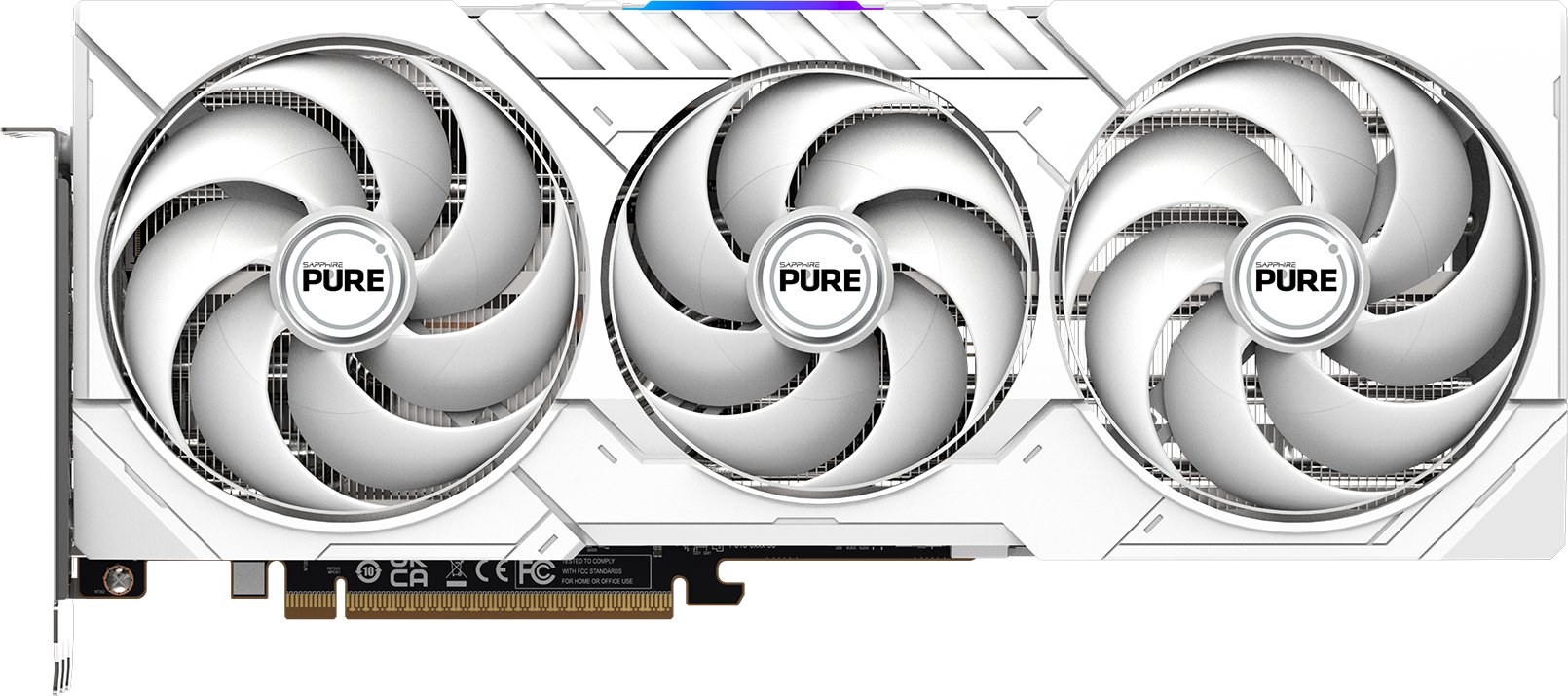

Sapphire PURE AMD Radeon RX 9070 OC - Front

Sapphire PURE AMD Radeon RX 9070 OC - Rear

Sapphire PURE AMD Radeon RX 9070 OC - Side

Sapphire PURE AMD Radeon RX 9070 OC
11349-02-20G
Available at Amazon from $799.00. Buy now!

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
Core
NameNavi 48
FoundryTSMC
Process Node4 nm
Transistors53900 million
Die Size357 mm²
Density151.0 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs128
RT Cores56
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth644.608 GB/s
Speed20.144 Gbps

Clocks
Base clock1330 MHz
Game Clock2210 MHz 2070 MHz
Boost Clock2700 MHz 2520 MHz
Memory Clock2518 MHz
Power
8-pin2
TDP220 w
Recommended PSU650 w 600 w
Display
DisplayPort2 2.1a
HDMI2 2.1b
HDCP2.3
Resolution7680 x 4320
Dimensions
Slots3.1
Length320 mm
Height120.3 mm
Width61.6 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock AMD Radeon RX 9070 Challenger RX9070 CL 16G	2520 MHz	2.6	290 mm	123 mm	51 mm
ASRock AMD Radeon RX 9070 Steel Legend OC RX9070 SL 16GO	2700 MHz +7.1%	2.9	298 mm	131 mm	58 mm
Asus Prime Radeon RX 9070 EVO OC Edition PRIME-RX9070-O16G-EVO	2590 MHz +2.8%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming Radeon RX 9070 OC Edition TUF-RX9070-O16G-GAMING	2650 MHz +5.2%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 OC Edition PRIME-RX9070-O16G	2590 MHz +2.8%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 GAMING GV-R9070GAMING-16GD	2520 MHz	2.5	288 mm	132 mm	50 mm
Gigabyte Radeon RX 9070 GAMING OC GV-R9070GAMING OC-16GD	2700 MHz +7.1%	2.5	288 mm	132 mm	50 mm
PowerColor Reaper AMD Radeon RX 9070 RX9070 16G-A	2520 MHz	2.1	289 mm	111 mm	41 mm
PowerColor Red Devil AMD Radeon RX 9070 RX9070 16G-E/OC	2700 MHz +7.1%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound AMD Radeon RX 9070 RX9070 16G-L/OC	2590 MHz +2.8%	2.1	327 mm	128 mm	41 mm
Sapphire NITRO+ AMD Radeon RX 9070 OC 11349-01-20G	2700 MHz +7.1%	3.4	330.8 mm	128.5 mm	65.7 mm
Sapphire PURE AMD Radeon RX 9070 OC 11349-02-20G	2700 MHz +7.1%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire PULSE AMD Radeon RX 9070 11349-03-20G	2520 MHz	2.6	280 mm	120.3 mm	51.5 mm
XFX QuickSilver AMD Radeon RX 9070 OC Gaming Edition RX-97QICKBB9	2700 MHz +7.1%	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070 OC Triple Fan Gaming Edition RX-97SWFB3B9	2700 MHz +7.1%	3.3	325 mm	150 mm	65 mm
