Asus TUF Gaming Radeon RX 9070 OC Edition
Specs, info and data
The GPU Database
Featuring 220+ GPU models — and growing.
Database > GPUs > AMD RX 9070 > Asus TUF Gaming Radeon RX 9070 OC Edition

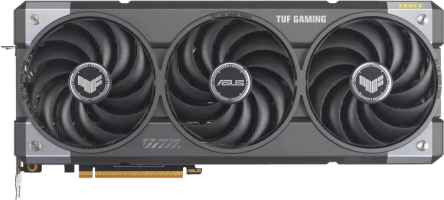

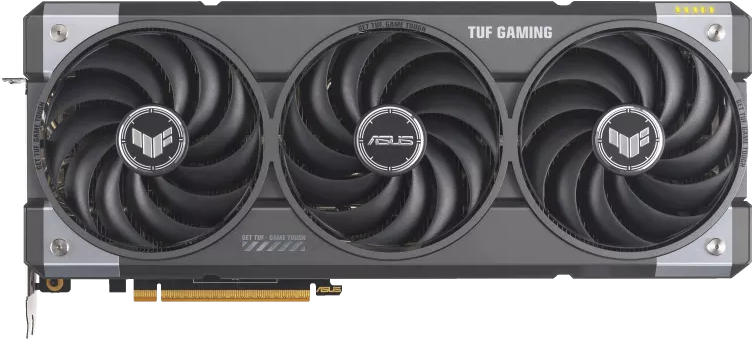

Asus TUF Gaming Radeon RX 9070 OC Edition - Front

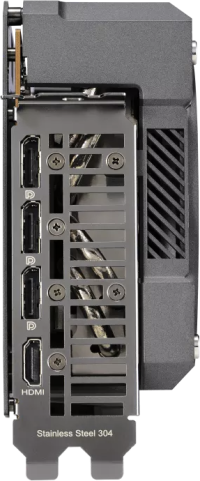

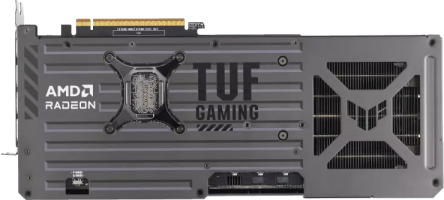

Asus TUF Gaming Radeon RX 9070 OC Edition - Front Asus TUF Gaming Radeon RX 9070 OC Edition - Rear Asus TUF Gaming Radeon RX 9070 OC Edition - Side Asus TUF Gaming Radeon RX 9070 OC Edition - Outputs
Asus TUF Gaming Radeon RX 9070 OC Edition
TUF-RX9070-O16G-GAMING
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
Core
NameNavi 48
FoundryTSMC
Process Node4 nm
Transistors53900 million
Die Size357 mm²
Density151.0 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs128
RT Cores56
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth644.608 GB/s
Speed20.144 Gbps
Clocks
Base clock1330 MHz
Game Clock2170 MHz 2070 MHz
Boost Clock2650 MHz 2520 MHz
Memory Clock2518 MHz
Power
8-pin2
TDP220 w
Recommended PSU750 w 600 w
Display
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Resolution7680 x 4320
Dimensions
Slots3.2
Length330 mm
Height140 mm
Width62.5 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
ASRock AMD Radeon RX 9070 Challenger
RX9070 CL 16G
2520 MHz2.6290 mm123 mm51 mm
ASRock AMD Radeon RX 9070 Steel Legend OC
RX9070 SL 16GO
2700 MHz +7.1%2.9298 mm131 mm58 mm
Asus Prime Radeon RX 9070 EVO OC Edition
PRIME-RX9070-O16G-EVO
2590 MHz +2.8%2.5304 mm126 mm50 mm
Asus TUF Gaming Radeon RX 9070 OC Edition
TUF-RX9070-O16G-GAMING
2650 MHz +5.2%3.2330 mm140 mm62.5 mm
Asus Prime Radeon RX 9070 OC Edition
PRIME-RX9070-O16G
2590 MHz +2.8%2.5312 mm130 mm50 mm
Gigabyte Radeon RX 9070 GAMING
GV-R9070GAMING-16GD
2520 MHz2.5288 mm132 mm50 mm
Gigabyte Radeon RX 9070 GAMING OC
GV-R9070GAMING OC-16GD
2700 MHz +7.1%2.5288 mm132 mm50 mm
PowerColor Reaper AMD Radeon RX 9070
RX9070 16G-A
2520 MHz2.1289 mm111 mm41 mm
PowerColor Red Devil AMD Radeon RX 9070
RX9070 16G-E/OC
2700 MHz +7.1%3.5340 mm132 mm69 mm
PowerColor Hellhound AMD Radeon RX 9070
RX9070 16G-L/OC
2590 MHz +2.8%2.1327 mm128 mm41 mm
Sapphire NITRO+ AMD Radeon RX 9070 OC
11349-01-20G
2700 MHz +7.1%3.4330.8 mm128.5 mm65.7 mm
Sapphire PURE AMD Radeon RX 9070 OC
11349-02-20G
2700 MHz +7.1%3.1320 mm120.3 mm61.6 mm
Sapphire PULSE AMD Radeon RX 9070
11349-03-20G
2520 MHz2.6280 mm120.3 mm51.5 mm
XFX QuickSilver AMD Radeon RX 9070 OC Gaming Edition
RX-97QICKBB9
2700 MHz +7.1%3.4350 mm140 mm67 mm
XFX Swift AMD Radeon RX 9070 OC Triple Fan Gaming Edition
RX-97SWFB3B9
2700 MHz +7.1%3.3325 mm150 mm65 mm
