Name: Gigabyte Radeon RX 9060 XT GAMING
Brand: Gigabyte
SKU: GV-R9060XTGAMING-8GD

Gigabyte Radeon RX 9060 XT GAMING

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9060 XT 8GB > Gigabyte Radeon RX 9060 XT GAMING

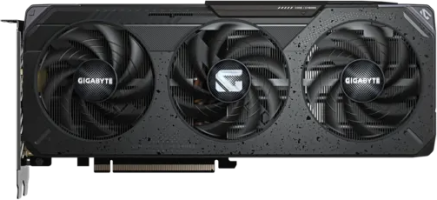

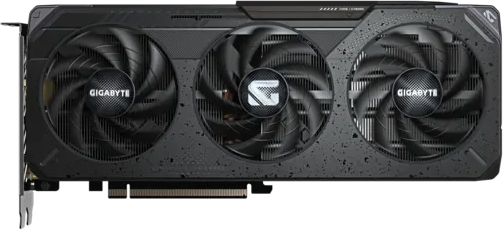

Gigabyte Radeon RX 9060 XT GAMING - Front

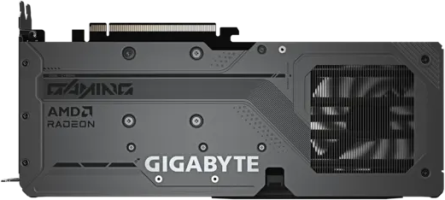

Gigabyte Radeon RX 9060 XT GAMING - Rear

Gigabyte Radeon RX 9060 XT GAMING - Side

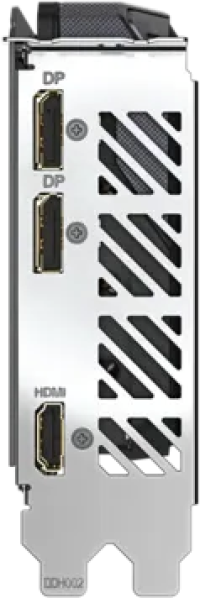

Gigabyte Radeon RX 9060 XT GAMING - Outputs

Gigabyte Radeon RX 9060 XT GAMING
GV-R9060XTGAMING-8GD

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 44
FoundryTSMC
Process Node4 nm
Transistors29700 million
Die Size199 mm²
Density149.2 /mm²
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth322.304 GB/s
Speed20.144 Gbps
Clocks
Base clock1700 MHz
Game Clock2530 MHz
Boost Clock3130 MHz
Memory Clock2518 MHz

Power
8-pin1
TDP160 w
Recommended PSU450 w 500 w
Display
DisplayPort2 2.1a
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2
Length281 mm
Height118 mm
Width40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual Radeon RX9060XT DUAL-RX9060XT-8G	3130 MHz	2.5	202 mm	120 mm	49 mm
Asus Prime Radeon RX 9060 XT OC Edition PRIME-RX9060XT-O8G	3310 MHz +5.8%	2.5	304 mm	126 mm	50 mm
ASRock Radeon RX 9060 XT Steel Legend OC RX9060XT SL 8GO	3320 MHz +6.1%	2.6	298 mm	131 mm	51 mm
ASRock Radeon RX 9060 XT Challenger OC RX9060XT CL 8GO	3290 MHz +5.1%	2.1	249 mm	132 mm	41 mm
Gigabyte Radeon RX 9060 XT GAMING GV-R9060XTGAMING-8GD	3130 MHz	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC GV-R9060XTGAMING OC-8GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
PowerColor Reaper AMD Radeon RX 9060 XT RX9060XT 8G-A	3130 MHz	2	200 mm	100 mm	40 mm
PowerColor Hellhound AMD Radeon RX 9060 XT RX9060XT 8G-L/OC	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
Sapphire PULSE AMD Radeon RX 9060 XT OC 11350-04-20G	3290 MHz +5.1%	2.3	244 mm	124 mm	46.1 mm
Sapphire PULSE AMD Radeon RX 9060 XT 11350-05-20G	3130 MHz	2	200 mm	122 mm	40.6 mm
XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition RX-96TS38GW7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC Triple Fan Gaming Edition RX-96TS38GB7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TSW8GWQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060XT OC Gaming Edition RX-96TSW8GBQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition RX-96TSW8GBA	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
