Name: ASRock Radeon RX 9060 XT Challenger OC
Brand: ASRock
SKU: RX9060XT CL 8GO

ASRock Radeon RX 9060 XT Challenger OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9060 XT 8GB > ASRock Radeon RX 9060 XT Challenger OC

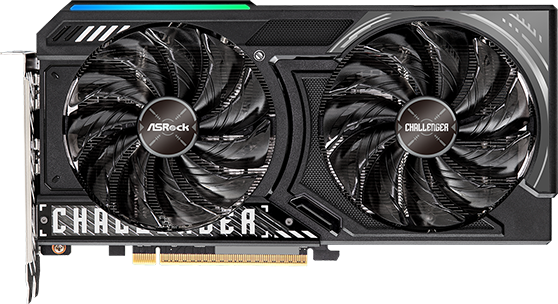

ASRock Radeon RX 9060 XT Challenger OC - Front

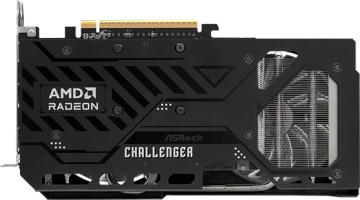

ASRock Radeon RX 9060 XT Challenger OC - Rear

ASRock Radeon RX 9060 XT Challenger OC - Side

ASRock Radeon RX 9060 XT Challenger OC
RX9060XT CL 8GO

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 44
FoundryTSMC
Process Node4 nm
Transistors29700 million
Die Size199 mm²
Density149.2 /mm²
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth322.304 GB/s
Speed20.144 Gbps
Clocks
Base clock1700 MHz
Game Clock2700 MHz 2530 MHz
Boost Clock3290 MHz 3130 MHz
Memory Clock2518 MHz

Power
8-pin1
TDP160 w
Recommended PSU550 w 500 w
Display
DisplayPort2 2.1a
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.1
Length249 mm
Height132 mm
Width41 mm
Weight645 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual Radeon RX9060XT DUAL-RX9060XT-8G	3130 MHz	2.5	202 mm	120 mm	49 mm
Asus Prime Radeon RX 9060 XT OC Edition PRIME-RX9060XT-O8G	3310 MHz +5.8%	2.5	304 mm	126 mm	50 mm
ASRock Radeon RX 9060 XT Steel Legend OC RX9060XT SL 8GO	3320 MHz +6.1%	2.6	298 mm	131 mm	51 mm
ASRock Radeon RX 9060 XT Challenger OC RX9060XT CL 8GO	3290 MHz +5.1%	2.1	249 mm	132 mm	41 mm
Gigabyte Radeon RX 9060 XT GAMING GV-R9060XTGAMING-8GD	3130 MHz	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC GV-R9060XTGAMING OC-8GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
PowerColor Reaper AMD Radeon RX 9060 XT RX9060XT 8G-A	3130 MHz	2	200 mm	100 mm	40 mm
PowerColor Hellhound AMD Radeon RX 9060 XT RX9060XT 8G-L/OC	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
Sapphire PULSE AMD Radeon RX 9060 XT OC 11350-04-20G	3290 MHz +5.1%	2.3	244 mm	124 mm	46.1 mm
Sapphire PULSE AMD Radeon RX 9060 XT 11350-05-20G	3130 MHz	2	200 mm	122 mm	40.6 mm
XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition RX-96TS38GW7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC Triple Fan Gaming Edition RX-96TS38GB7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TSW8GWQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060XT OC Gaming Edition RX-96TSW8GBQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition RX-96TSW8GBA	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
