Name: Sapphire PURE AMD Radeon RX 9060 XT OC
Brand: Sapphire
SKU: 11350-02-20G

Sapphire PURE AMD Radeon RX 9060 XT OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9060 XT > Sapphire PURE AMD Radeon RX 9060 XT OC

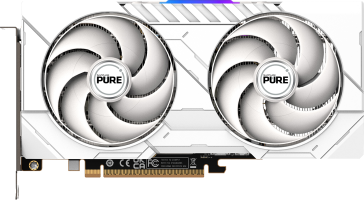

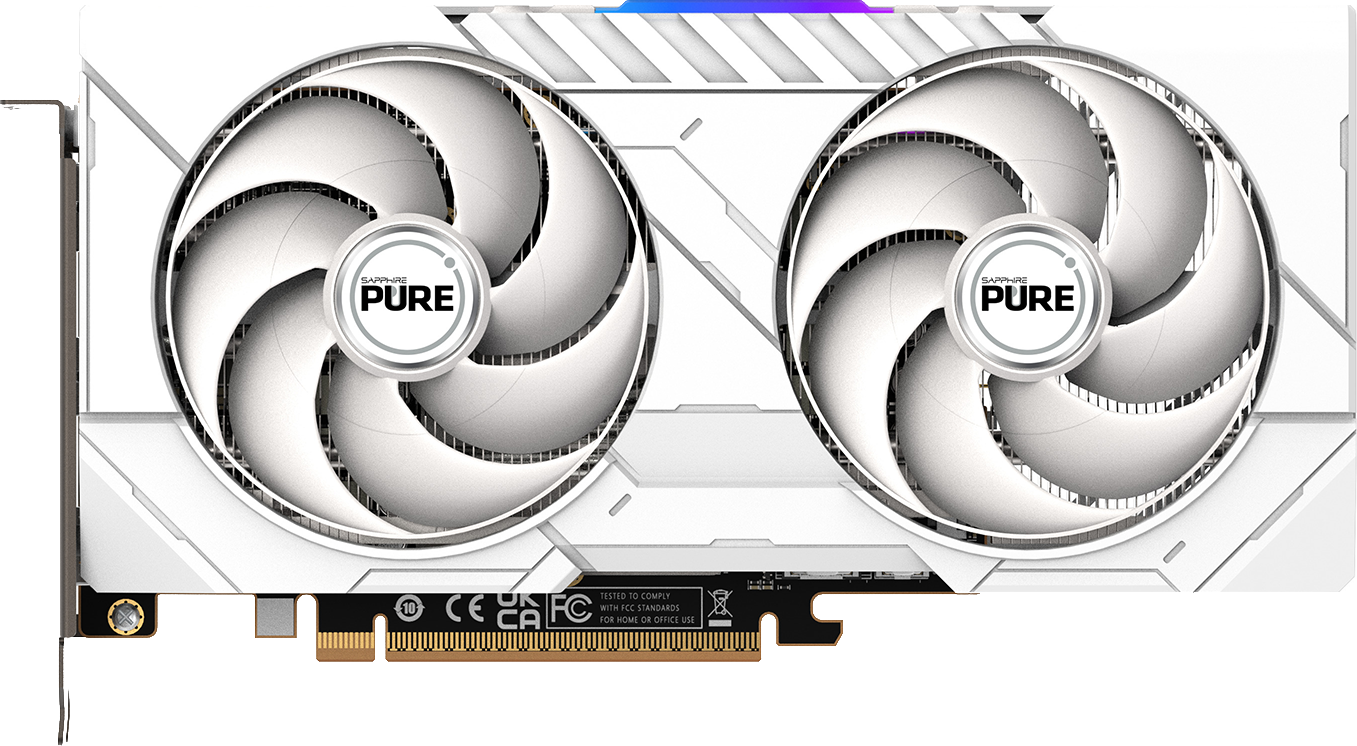

Sapphire PURE AMD Radeon RX 9060 XT OC - Front

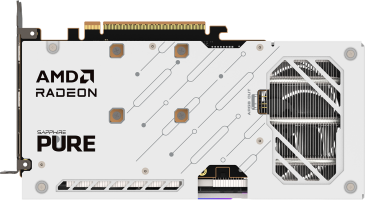

Sapphire PURE AMD Radeon RX 9060 XT OC - Rear

Sapphire PURE AMD Radeon RX 9060 XT OC - Side

Sapphire PURE AMD Radeon RX 9060 XT OC
11350-02-20G
Available at Amazon from $785.30. Buy now!

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 44
FoundryTSMC
Process Node4 nm
Transistors29700 million
Die Size199 mm²
Density149.2 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Memory
TechnologyGDDR6
Size16 GB
Bus128 bit
Bandwidth168.064 GB/s
Speed10.504 Gbps

Clocks
Base clock1700 MHz
Game Clock2700 MHz 2530 MHz
Boost Clock3290 MHz 3130 MHz
Memory Clock2518 MHz
Power
8-pin1
TDP160 w
Recommended PSU450 w 500 w
Display
DisplayPort1 2.1a
HDMI2 2.1b
HDCP2.3
Dimensions
Slots2.3
Length240 mm
Height124 mm
Width46.1 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual Radeon RX 9060 XT DUAL-RX9060XT-16G	3230 MHz +3.2%	2.5	202 mm	120 mm	49 mm
Asus Prime Radeon RX 9060 XT OC Edition PRIME-RX9060XT-O16G	3310 MHz +5.8%	2.5	304 mm	126 mm	50 mm
Asus Dual Radeon RX 9060 XT White Edition DUAL-RX9060XT-16G-WHITE	3230 MHz +3.2%	2.5	202 mm	120 mm	49 mm
Asus TUF Gaming Radeon RX 9060 XT OC Edition TUF-RX9060XT-O16G-GAMING	3320 MHz +6.1%	2.5	304 mm	126 mm	50 mm
ASRock Radeon RX 9060 XT Steel Legend OC RX9060XT SL 16GO	3320 MHz +6.1%	2.6	298 mm	131 mm	51 mm
ASRock Radeon RX 9060 XT Challenger RX9060XT CL 16G	3230 MHz +3.2%	2.1	249 mm	132 mm	41 mm
ASRock Radeon RX 9060 XT Challenger OC RX9060XT CL 16GO	3290 MHz +5.1%	2.1	249 mm	132 mm	41 mm
Gigabyte Radeon RX 9060 XT GAMING GV-R9060XTGAMING-16GD	3230 MHz +3.2%	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC GV-R9060XTGAMING OC-16GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC ICE GV-R906XGAMINGOCICE-16GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
PowerColor Reaper AMD Radeon RX 9060 XT RX9060XT 16G-A	3230 MHz +3.2%	2	200 mm	100 mm	39 mm
PowerColor Hellhound AMD Radeon RX 9060 XT RX9060XT 16G-L/OC	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9060 XT RX9060XT 16G-L/OC/WHITE	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
XFX Mercury AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TMERCW9	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
XFX Mercury AMD Radeon RX 9060XT OC Gaming Edition RX-96TMERCBA	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
XFX Mercury AMD Radeon RX 9060 XT OC Gaming Edition RX-96TMERCB9	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
Sapphire NITRO+ AMD Radeon RX 9060 XT OC 11350-01-20G	3320 MHz +6.1%	2.8	300 mm	131 mm	55 mm
Sapphire PURE AMD Radeon RX 9060 XT OC 11350-02-20G	3290 MHz +5.1%	2.3	240 mm	124 mm	46.1 mm
Sapphire PULSE AMD Radeon RX 9060 XT OC 11350-03-20G	3290 MHz +5.1%	2.3	240 mm	124 mm	46.1 mm
XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition RX-96TS316W7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC Triple Fan Gaming Edition RX-96TS316B7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060XT OC Triple Fan Gaming Edition RX-96TS316BA	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TSW16WQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition RX-96TSW16BQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
