Name: ASRock Radeon RX 9060 XT Challenger
Brand: ASRock
SKU: RX9060XT CL 16G

ASRock Radeon RX 9060 XT Challenger

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9060 XT > ASRock Radeon RX 9060 XT Challenger

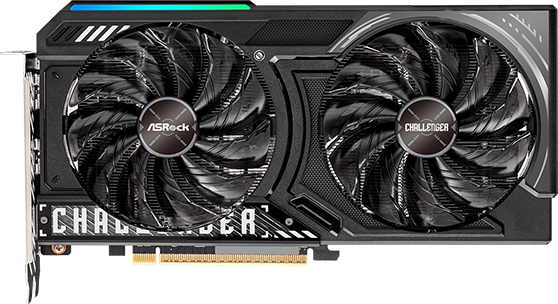

ASRock Radeon RX 9060 XT Challenger - Front

ASRock Radeon RX 9060 XT Challenger - Rear

ASRock Radeon RX 9060 XT Challenger - Side

ASRock Radeon RX 9060 XT Challenger
RX9060XT CL 16G

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 44
FoundryTSMC
Process Node4 nm
Transistors29700 million
Die Size199 mm²
Density149.2 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Memory
TechnologyGDDR6
Size16 GB
Bus128 bit
Bandwidth168.064 GB/s
Speed10.504 Gbps

Clocks
Base clock1700 MHz
Game Clock2620 MHz 2530 MHz
Boost Clock3230 MHz 3130 MHz
Memory Clock2518 MHz
Power
8-pin1
TDP160 w
Recommended PSU550 w 500 w
Display
DisplayPort2 2.1a
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.1
Length249 mm
Height132 mm
Width41 mm
Weight645 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual Radeon RX 9060 XT DUAL-RX9060XT-16G	3230 MHz +3.2%	2.5	202 mm	120 mm	49 mm
Asus Prime Radeon RX 9060 XT OC Edition PRIME-RX9060XT-O16G	3310 MHz +5.8%	2.5	304 mm	126 mm	50 mm
Asus Dual Radeon RX 9060 XT White Edition DUAL-RX9060XT-16G-WHITE	3230 MHz +3.2%	2.5	202 mm	120 mm	49 mm
Asus TUF Gaming Radeon RX 9060 XT OC Edition TUF-RX9060XT-O16G-GAMING	3320 MHz +6.1%	2.5	304 mm	126 mm	50 mm
ASRock Radeon RX 9060 XT Steel Legend OC RX9060XT SL 16GO	3320 MHz +6.1%	2.6	298 mm	131 mm	51 mm
ASRock Radeon RX 9060 XT Challenger RX9060XT CL 16G	3230 MHz +3.2%	2.1	249 mm	132 mm	41 mm
ASRock Radeon RX 9060 XT Challenger OC RX9060XT CL 16GO	3290 MHz +5.1%	2.1	249 mm	132 mm	41 mm
Gigabyte Radeon RX 9060 XT GAMING GV-R9060XTGAMING-16GD	3230 MHz +3.2%	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC GV-R9060XTGAMING OC-16GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
Gigabyte Radeon RX 9060 XT GAMING OC ICE GV-R906XGAMINGOCICE-16GD	3320 MHz +6.1%	2	281 mm	118 mm	40 mm
PowerColor Reaper AMD Radeon RX 9060 XT RX9060XT 16G-A	3230 MHz +3.2%	2	200 mm	100 mm	39 mm
PowerColor Hellhound AMD Radeon RX 9060 XT RX9060XT 16G-L/OC	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9060 XT RX9060XT 16G-L/OC/WHITE	3310 MHz +5.8%	2	310 mm	100 mm	40 mm
XFX Mercury AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TMERCW9	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
XFX Mercury AMD Radeon RX 9060XT OC Gaming Edition RX-96TMERCBA	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
XFX Mercury AMD Radeon RX 9060 XT OC Gaming Edition RX-96TMERCB9	3320 MHz +6.1%	2.7	320 mm	127 mm	53 mm
Sapphire NITRO+ AMD Radeon RX 9060 XT OC 11350-01-20G	3320 MHz +6.1%	2.8	300 mm	131 mm	55 mm
Sapphire PURE AMD Radeon RX 9060 XT OC 11350-02-20G	3290 MHz +5.1%	2.3	240 mm	124 mm	46.1 mm
Sapphire PULSE AMD Radeon RX 9060 XT OC 11350-03-20G	3290 MHz +5.1%	2.3	240 mm	124 mm	46.1 mm
XFX Swift AMD Radeon RX 9060 XT OC White Triple Fan Gaming Edition RX-96TS316W7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC Triple Fan Gaming Edition RX-96TS316B7	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060XT OC Triple Fan Gaming Edition RX-96TS316BA	3320 MHz +6.1%	2.5	290 mm	124 mm	49 mm
XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition RX-96TSW16WQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition RX-96TSW16BQ	3320 MHz +6.1%	2.4	270 mm	124 mm	48 mm
