Name: Gainward GeForce RTX 5080 Phantom
Brand: Gainward
SKU: NE75080019T2-GB2030P

Gainward GeForce RTX 5080 Phantom

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 5080 > Gainward GeForce RTX 5080 Phantom

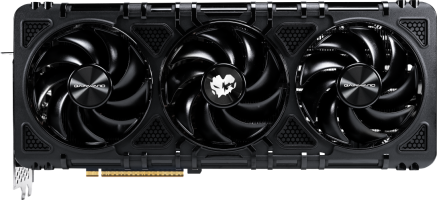

Gainward GeForce RTX 5080 Phantom - Front

Gainward GeForce RTX 5080 Phantom - Rear

Gainward GeForce RTX 5080 Phantom - Side

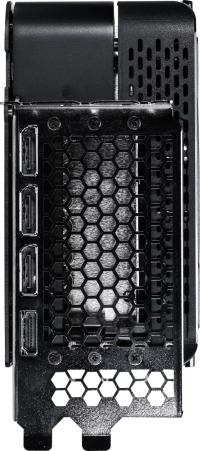

Gainward GeForce RTX 5080 Phantom - Outputs

Gainward GeForce RTX 5080 Phantom
NE75080019T2-GB2030P
The Phantom Series embodies sleek sophistication with its all-black design, balancing elegance with high performance.

Beyond its stealthy exterior, the Phantom delivers advanced thermal solutions engineered to tackle the most demanding gaming and AI tasks.

Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
SMs84
RT Cores84
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth960 GB/s
Speed30 Gbps

Clocks
Base clock2300 MHz
Boost Clock2617 MHz
Memory Clock1875 MHz
Power
16-pin1
TDP360 w
Recommended PSU850 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.5 2
Length331.9 mm 304 mm
Height145.6 mm 137 mm
Width69.9 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition ROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC HATSUNE MIKU EDITION	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC DOOM Edition ROG-ASTRAL-RTX5080-O16G-DOOM-EDITION	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE OC Edition ROG-ASTRAL-RTX5080-O16G-WHITE	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE Edition ROG-ASTRAL/ROG-ASTRAL-RTX5080-16G-WHITE	2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 ROG-ASTRAL-RTX5080-16G-GAMING	2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC Edition ROG-ASTRAL-RTX5080-O16G-GAMING	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ULTRA ZT-B50800BU-10P	2730 MHz +4.3%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ZT-B50800B-10P	2670 MHz +2.0%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 SOLID OC White Edition ZT-B50800Q-10P	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID OC ZT-B50800J-10P	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID ZT-B50800D-10P	2617 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID CORE OC ZT-B50800J2-10P	2640 MHz +0.9%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5080 SOLID CORE ZT-B50800D2-10P	2617 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE GV-N5080AORUSX W-16GD	2805 MHz +7.2%	2	220 mm	130 mm	40 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE WB GV-N5080AORUSX WB-16GD	2805 MHz +7.2%	2	208 mm	156 mm	29 mm
Gigabyte GeForce RTX 5080 MASTER ICE GV-N5080AORUSM ICE-16GD	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5080 MASTER GV-N5080AORUS M-16GD	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5080 GAMING OC GV-N5080GAMING OC-16GD	2730 MHz +4.3%	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 GAMING GV-N5080GAMING-16GD	2617 MHz	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 AERO OC SFF GV-N5080AERO OC-16GD	2730 MHz +4.3%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE OC SFF GV-N5080WF3OC-16GD	2670 MHz +2.0%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE SFF GV-N5080WF3-16GD	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5080 PROART-RTX5080-16G	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus GeForce RTX 5080 Noctua OC Edition RTX5080-O16G-NOCTUA	2700 MHz +3.2%	4	385 mm	151 mm	80 mm
Asus ProArt GeForce RTX 5080 OC Edition PROART-RTX5080-O16G	2700 MHz +3.2%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 TUF-RTX5080-16G-GAMING	2617 MHz	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 OC Edition TUF-RTX5080-O16G-GAMING	2700 MHz +3.2%	3.6	348 mm	146 mm	72 mm
Asus PRIME GeForce RTX 5080 PRIME-RTX5080-16G	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 OC Edition PRIME-RTX5080-O16G	2655 MHz +1.5%	2.5	304 mm	126 mm	50 mm
Zotac GeForce RTX 5080 APOCALYPSE OC ZT-B50800C-10P	2730 MHz +4.3%	3.7	361 mm	138 mm	73 mm
MSI GeForce RTX 5080 EXPERT G5080-16E	2617 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 EXPERT OC G5080-16EC	2715 MHz +3.7%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 INSPIRE 3X G5080-16I3	2617 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 INSPIRE 3X OC G5080-16I3C	2640 MHz +0.9%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 SHADOW 3X G5080-16S3	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 SHADOW 3X OC G5080-16S3C	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO G5080-16GT	2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC G5080-16GTC	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VENTUS 3X G5080-16V3	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC PLUS G5080-16V3CP	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO WHITE G5080-16GTW	2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC WHITE G5080-16GTCW	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VANGUARD OC G5080-16VGC	2700 MHz +3.2%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC G5080-16VGS	2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC LAUNCH EDITION G5080-16VGSL	2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 SUPRIM OC G5080-16SPC	2700 MHz +3.2%	3.8	359 mm	150 mm	76 mm
MSI GeForce RTX 5080 SUPRIM SOC G5080-16SPS	2745 MHz +4.9%	3.8	359 mm	15 mm	76 mm
MSI GeForce RTX 5080 SUPRIM LIQUID OC G5080-16SLC	2700 MHz +3.2%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 SUPRIM LIQUID SOC G5080-16SLS	2745 MHz +4.9%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 VENTUS 3X WHITE G5080-16V3W	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC WHITE G5080-16V3CW	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
Palit GeForce RTX 5080 GamingPro V1 NE75080019T2-GB2031Y	2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC V1 NE75080S19T2-GB2031Y	2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro NE75080019T2-GB2031A	2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC NE75080S19T2-GB2031A	2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GameRock NE75080019T2-GB2030G	2617 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5080 GameRock OC NE75080T19T2-GB2030G	2730 MHz +4.3%	3.6	331.9 mm	150 mm	70.4 mm
PNY GeForce RTX 5080 Triple Fan GPU VCG508016TFXPB1	2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Overclocked Triple Fan GPU VCG508016TFXPB1-O	2730 MHz +4.3%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Triple Fan VCG508016TFXXPB1	2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Overclocked Triple Fan VCG508016TFXXPB1-O	2780 MHz +6.2%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Slim Dual Fan Overclocked VCG508016DFSXPB1-O	2730 MHz +4.3%	2	300 mm	150 mm	40 mm
PNY GeForce RTX 5080 Slim Dual Fan VCG508016DFSXPB1	2617 MHz	2	300 mm	150 mm	40 mm
Gainward GeForce RTX 5080 Phoenix V1 NE75080019T2-GB2031C	2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS V1 NE75080S19T2-GB2031C	2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix NE75080019T2-GB2031X	2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS NE75080S19T2-GB2031X	2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phantom NE75080019T2-GB2030P	2617 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5080 Phantom GS NE75080T19T2-GB2030P	2730 MHz +4.3%	3.5	331.9 mm	145.6 mm	69.9 mm
MSI GeForce RTX 5080 VENTUS 3X OC G5080-16V3C	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
NVIDIA GeForce RTX 5080 Founders Edition 900-1G144-2545-000	2617 MHz	2	304 mm	137 mm	40 mm

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	88 C

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

Memory
Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	960 GB/s
Speed	30 Gbps

Dimensions
Slots	3.5 2
Length	331.9 mm 304 mm
Height	145.6 mm 137 mm
Width	69.9 mm 40 mm

GPU Core Config
Cores	10752
TMUs	336
ROPs	112
SMs	84
RT Cores	84

Power
16-pin	1
TDP	360 w
Recommended PSU	850 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3
