PNY GeForce RTX 5070 Triple Fan - Outputs

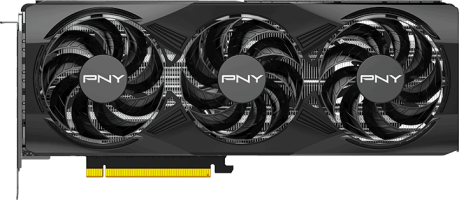

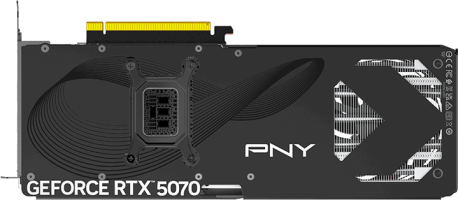

PNY GeForce RTX 5070 Triple Fan
VCG507012TFXPB1
Get game-changing performance with the GeForce RTX™ 5070, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
Available at Amazon from $625.25. Buy now!

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB205
InterfacePCIe 5.0 x16
Core
NameGB205
FoundryTSMC
Process Node5 nm
Transistors31100 million
Die Size263 mm²
Density118.3 /mm²
GPU Core Config
Cores6144
TMUs192
ROPs80
SMs48
Tensor Cores192
Memory
TechnologyGDDR7
Size12 GB
Bus192 bit
Bandwidth672 GB/s
Speed28 Gbps

Clocks
Base clock2325 MHz
Boost Clock2510 MHz 2512 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP250 w
Recommended PSU650 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.4 2
Length299.7 mm 242 mm
Height120.1 mm 112 mm
Width48.3 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix GeForce RTX 5070 ROG-STRIX-RTX5070-12G-GAMING	2512 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 OC Edition ROG-STRIX-RTX5070-O12G-GAMING	2655 MHz +5.7%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 AMP White Edition ZT-B50700FQ-10P	2587 MHz +3.0%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 SOLID OC ZT-B50700J-10P	2542 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 SOLID ZT-B50700D-10P	2512 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Twin Edge OC White Edition ZT-B50700Q-10P	2542 MHz +1.2%	2.1	241.5 mm	120.1 mm	40.6 mm
Zotac GeForce RTX 5070 Twin Edge OC ZT-B50700H-10P	2542 MHz +1.2%	2.1	241.5 mm	120.1 mm	40.6 mm
Zotac GeForce RTX 5070 Twin Edge ZT-B50700E-10P	2512 MHz	2.1	241.5 mm	120.1 mm	40.6 mm
Gigabyte AORUS GeForce RTX 5070 MASTER GV-N5070AORUS M-12GD	2715 MHz +8.1%	3.2	317 mm	136 mm	64 mm
Gigabyte GeForce RTX 5070 GAMING OC GV-N5070GAMING OC-12GD	2625 MHz +4.5%	2.8	327 mm	132 mm	56 mm
Gigabyte GeForce RTX 5070 GAMING GV-N5070GAMING-12GD	2512 MHz	2.8	327 mm	132 mm	56 mm
Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF GV-N5070EAGLEOC ICE-12GD	2587 MHz +3.0%	2.5	290 mm	120 mm	50 mm
Gigabyte GeForce RTX 5070 EAGLE OC SFF GV-N5070EAGLE OC-12GD	2587 MHz +3.0%	2.5	290 mm	120 mm	50 mm
Gigabyte GeForce RTX 5070 AERO OC GV-N5070AERO OC-12GD	2625 MHz +4.5%	2.8	324 mm	130 mm	56 mm
Gigabyte GeForce RTX 5070 AERO GV-N5070AERO-12GD	2512 MHz	2.8	324 mm	130 mm	56 mm
Gigabyte GeForce RTX 5070 WINDFORCE OC SFF GV-N5070WF3OC-12GD	2542 MHz +1.2%	2.5	282 mm	110 mm	50 mm
Gigabyte GeForce RTX 5070 WINDFORCE SFF GV-N5070WF3-12GD	2512 MHz	2.5	282 mm	110 mm	50 mm
Asus Dual GeForce RTX 5070 EVO OC Edition DUAL-RTX5070-O12G-EVO	2542 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5070 EVO DUAL-RTX5070-12G-EVO	2512 MHz	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5070 White OC Edition PRIME-RTX5070-O12G-WHITE	2557 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus Dual GeForce RTX 5070 DUAL-RTX5070-12G	2512 MHz	2.6	249 mm	126 mm	50.6 mm
Asus Dual GeForce RTX 5070 OC Edition DUAL-RTX5070-O12G	2542 MHz +1.2%	2.6	249 mm	126 mm	50.6 mm
Asus TUF Gaming GeForce RTX 5070 TUF-RTX5070-12G-GAMING	2512 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 OC Edition TUF-RTX5070-O12G-GAMING	2610 MHz +3.9%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 PRIME-RTX5070-12G	2512 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 OC Edition PRIME-RTX5070-O12G	2557 MHz +1.8%	2.5	304 mm	126 mm	50 mm
MSI GeForce RTX 5070 World of Warcraft MIDNIGHT VOID EDITION OC G507012WMVEC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 World of Warcraft MIDNIGHT LIGHT EDITION OC G507012WMLEC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING DUKE 3X WHITE G5070-12D3W	2512 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X OC WHITE G5070-12D3CW	2557 MHz +1.8%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X G5070-12D3	2512 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X OC G5070-12D3C	2557 MHz +1.8%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 SHADOW 3X G5070-12S3	2512 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 SHADOW 3X OC G5070-12S3C	2542 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 SHADOW 2X G5070-12S2	2512 MHz	2.5	231 mm	126 mm	50 mm
MSI GeForce RTX 5070 SHADOW 2X OC G5070-12S2C	2542 MHz +1.2%	2.5	231 mm	126 mm	50 mm
MSI GeForce RTX 5070 VANGUARD SOC LAUNCH EDITION G5070-12VGSL	2640 MHz +5.1%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 VANGUARD SOC G5070-12VGS	2640 MHz +5.1%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 VANGUARD OC G5070-12VGC	2610 MHz +3.9%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 GAMING TRIO G5070-12GT	2512 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO OC G5070-12GTC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO WHITE G5070-12GTW	2512 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO OC WHITE G5070-12GTCW	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 INSPIRE 3X G5070-12I3	2512 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 INSPIRE 3X OC G5070-12I3C	2542 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 VENTUS 3X G5070-12V3	2512 MHz	2.5	302 mm	121 mm	49 mm
MSI GeForce RTX 5070 VENTUS 3X OC G5070-12V3C	2542 MHz +1.2%	2.5	302 mm	121 mm	49 mm
MSI GeForce RTX 5070 VENTUS 2X WHITE G5070-12V2W	2512 MHz	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X OC WHITE G5070-12V2CW	2542 MHz +1.2%	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X G5070-12V2	2512 MHz	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X OC G5070-12V2C	2542 MHz +1.2%	2.5	236 mm	126 mm	50 mm
Palit GeForce RTX 5070 White OC NE75070U19K9-GB2050W	2527 MHz +0.6%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 Infinity 3 NE75070019K9-GB2050S	2512 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 Infinity 3 OC NE75070S19K9-GB2050S	2542 MHz +1.2%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 GamingPro-S NE75070019K9-GB2050U	2512 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 GamingPro-S OC NE75070T19K9-GB2050U	2572 MHz +2.4%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 GamingPro NE75070019K9-GB2050A	2512 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 GamingPro OC NE75070T19K9-GB2050A	2572 MHz +2.4%	3	331.9 mm	127.1 mm	60 mm
PNY GeForce RTX 5070 Slim Dual Fan Overclocked VCG507012DFSXPB1-O	2587 MHz +3.0%	2	290 mm	128 mm	40 mm
PNY GeForce RTX 5070 Slim Dual Fan VCG507012DFSXPB1	2512 MHz	2	290 mm	128 mm	40 mm
PNY GeForce RTX 5070 ARGB EPIC-X RGB Overclocked Triple Fan VCG507012TFXXPB1-O	2640 MHz +5.1%	2.4	299.7 mm	120.1 mm	48.3 mm
PNY GeForce RTX 5070 ARGB EPIC-X RGB Triple Fan VCG507012TFXXPB1	2510 MHz -0.1%	2.4	299.7 mm	120.1 mm	48.3 mm
PNY GeForce RTX 5070 Triple Fan VCG507012TFXPB1	2510 MHz -0.1%	2.4	299.7 mm	120.1 mm	48.3 mm
PNY GeForce RTX 5070 Overclocked Triple Fan VCG507012TFXPB1-O	2685 MHz +6.9%	2.4	299.7 mm	120.1 mm	48.3 mm
Gainward GeForce RTX 5070 Phoenix-S NE75070019K9-GB2050K	2512 MHz	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Phoenix-S GS NE75070T19K9-GB2050K	2572 MHz +2.4%	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Phoenix NE75070019K9-GB2050X	2512 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Phoenix GS NE75070T19K9-GB2050X	2572 MHz +2.4%	3	331.9 mm	133.1 mm	60 mm
NVIDIA GeForce RTX 5070 Founders Edition 900-1G146-2570-000	2512 MHz	2	242 mm	112 mm	40 mm

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB205
Interface	PCIe 5.0 x16

Core
Name	GB205
Foundry	TSMC
Process Node	5 nm
Transistors	31100 million
Die Size	263 mm²
Density	118.3 /mm²

Memory
Technology	GDDR7
Size	12 GB
Bus	192 bit
Bandwidth	672 GB/s
Speed	28 Gbps

Clocks
Base clock	2325 MHz
Boost Clock	2510 MHz 2512 MHz
Memory Clock	1750 MHz

Dimensions
Slots	2.4 2
Length	299.7 mm 242 mm
Height	120.1 mm 112 mm
Width	48.3 mm 40 mm

GPU Core Config
Cores	6144
TMUs	192
ROPs	80
SMs	48
Tensor Cores	192

Power
16-pin	1
TDP	250 w
Recommended PSU	650 w
