MSI GeForce GTX 780 LIGHTNING LE
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 780 > MSI GeForce GTX 780 LIGHTNING LE

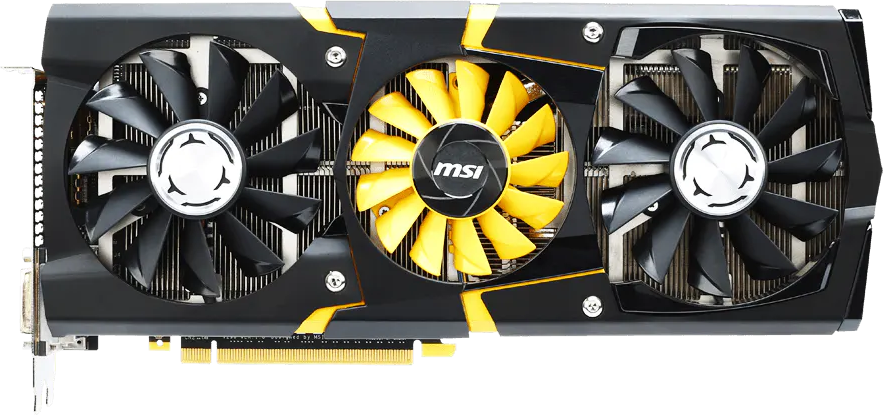

MSI GeForce GTX 780 LIGHTNING LE - Front

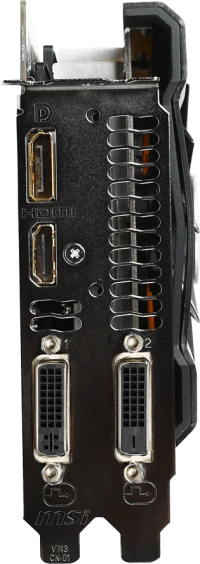

MSI GeForce GTX 780 LIGHTNING LE - Front MSI GeForce GTX 780 LIGHTNING LE - Side MSI GeForce GTX 780 LIGHTNING LE - Outputs
MSI GeForce GTX 780 LIGHTNING LE
N780 LIGHTNING LE
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK110
FoundryTSMC
Process Node28 nm
Transistors7080 million
Die Size561.0 mm²
Density12.6 /mm²
GPU Core Config
Cores2304
TMUs192
ROPs48
Memory
TechnologyGDDR5
Size3 GB
Bus384 bit
Clocks
Base clock889 MHz 863 MHz
Boost Clock941 MHz 902 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots3 2
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Asus ROG Poseidon GTX 780
ROG-POSEIDON-GTX780-3GD5
902 MHz2287 mm
EVGA GTX 780 CLASSIFIED
03G-P4-3788-KR
1046 MHz +16.0%2281 mm138 mm37 mm
MSI GeForce GTX 780 LIGHTNING
N780 LIGHTNING
1033 MHz +14.5%2.6295 mm128.6 mm51.4 mm
MSI GeForce GTX 780 GAMING OC
N780-TF-3GD5OC
1006 MHz +11.5%1.9266 mm129 mm38 mm
EVGA GTX 780 Reference
03G-P4-2781-KR
902 MHz2267 mm111 mm38 mm
EVGA GTX 780 SC
03G-P4-2784-KR
1020 MHz +13.1%2268 mm110 mm35 mm
MSI GeForce GTX 780 LIGHTNING LE
N780 LIGHTNING LE
941 MHz +4.3%3
