MSI GeForce GTX 660 Ti Power Edition
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 660 Ti > MSI GeForce GTX 660 Ti Power Edition

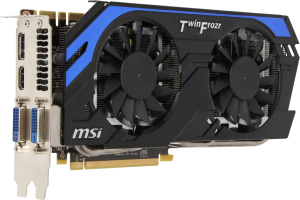

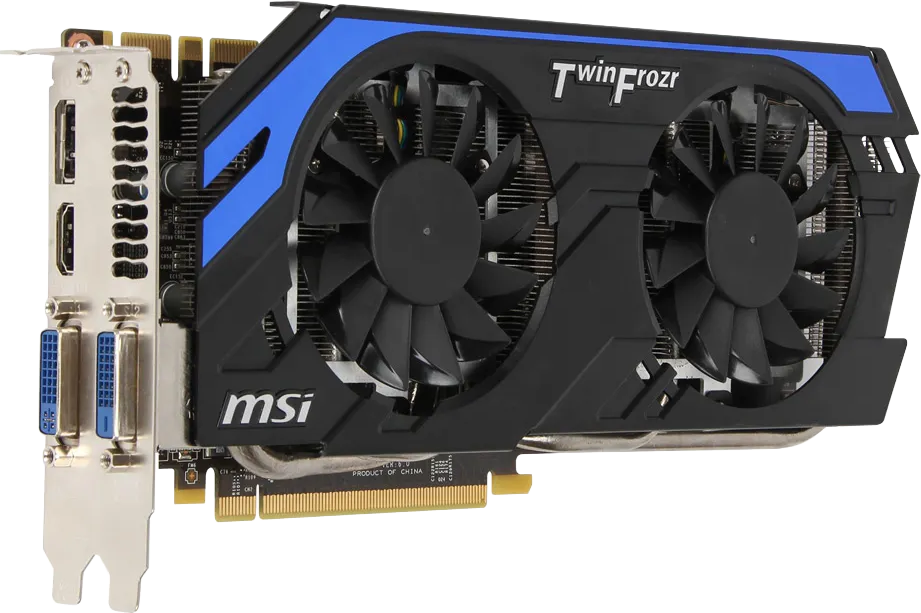

MSI GeForce GTX 660 Ti Power Edition - Front

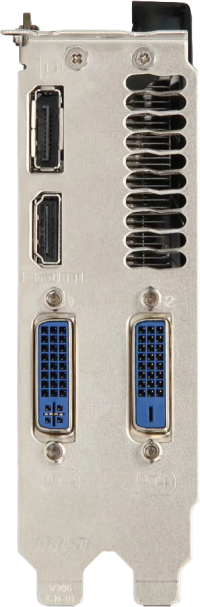

MSI GeForce GTX 660 Ti Power Edition - Front MSI GeForce GTX 660 Ti Power Edition - Rear MSI GeForce GTX 660 Ti Power Edition - Side MSI GeForce GTX 660 Ti Power Edition - Outputs
MSI GeForce GTX 660 Ti Power Edition
N660TI PE 2GD5/OC
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1344
TMUs112
ROPs24
Memory
TechnologyGDDR5
Size2 GB
Bus192 bit
Bandwidth144.2 GB/s
Speed6.0 Gbps
Clocks
Base clock1019 MHz 915 MHz
Boost Clock1097 MHz 980 MHz
Memory Clock1502 MHz
Power
6-pin2
TDP150 w
Recommended PSU450 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length265 mm 241 mm
Height113 mm
Width38 mm
Weight711 g
Bios files
80.04.4B.00.16
N/A
Size: 179 KB
Build: 2012-07-09
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 660 Ti
N660TI-2GD5/OC
1019 MHz +4.0%2245 mm98 mm39 mm
MSI GeForce GTX 660 Ti Power Edition
N660TI PE 2GD5/OC
1097 MHz +11.9%2265 mm113 mm38 mm
