Zotac GeForce GTX 480
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 480 > Zotac GeForce GTX 480

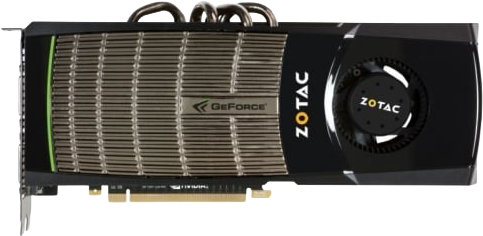

Zotac GeForce GTX 480 - Front

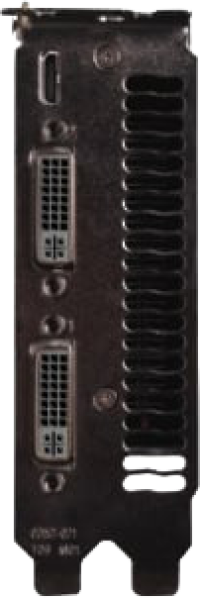

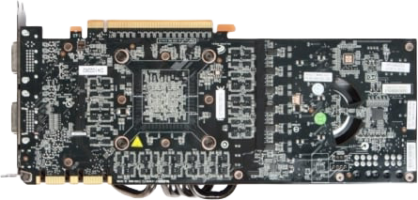

Zotac GeForce GTX 480 - Front Zotac GeForce GTX 480 - Rear Zotac GeForce GTX 480 - Side Zotac GeForce GTX 480 - Outputs
Zotac GeForce GTX 480
288-0K115-001ZT
Information
PlatformConsumer
ArchitectureFermi
GenerationGeForce 400
Previous GenGeForce 300
Next GenGeForce 500
InterfacePCIe 2.0 x16
Core
NameGF100
FoundryTSMC
Process Node40 nm
Transistors3100 million
Die Size529.0 mm²
Density5.9 /mm²
GPU Core Config
Cores480
TMUs60
ROPs48
Memory
TechnologyGDDR5
Size1.5 GB
Bus384 bit
Bandwidth177.4 GB/s
Speed3.7 Gbps
Clocks
Base clock701 MHz
Shader Clock1401 MHz
Memory Clock924 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Dimensions
Slots2
Length267 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 480 LIGHTNING
N480GTX LIGHTNING
 -100.0%2.3305 mm127 mm45 mm
Zotac GeForce GTX 480
288-0K115-001ZT
 -100.0%
