Name: ASRock Intel Arc B580 Steel Legend OC
Brand: ASRock

ASRock Intel Arc B580 Steel Legend OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > Intel Arc B580 > ASRock Intel Arc B580 Steel Legend OC

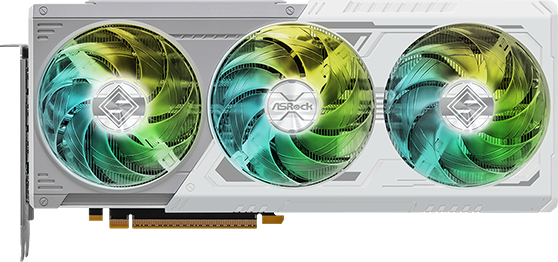

ASRock Intel Arc B580 Steel Legend OC - Front

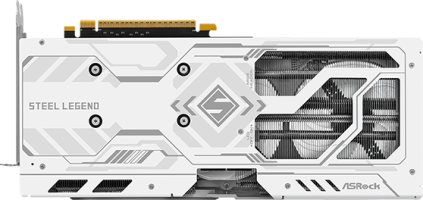

ASRock Intel Arc B580 Steel Legend OC - Rear

ASRock Intel Arc B580 Steel Legend OC - Side

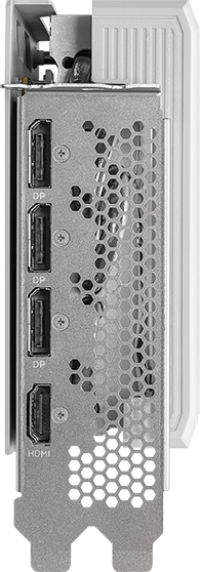

ASRock Intel Arc B580 Steel Legend OC - Outputs

ASRock Intel Arc B580 Steel Legend OC
Available at Amazon from $309.99. Buy now!

Information
PlatformConsumer
ArchitectureBattlemage
GenerationArc B
InterfacePCIe 4.0 x8
Core
NameBMG-G21
FoundryTSMC
Process Node5 nm
Transistors19600 million
Die Size272 mm²
Density72.1 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs80
Tensor Cores160
RT Cores20
Memory
TechnologyGDDR6
Size12 GB
Bus192 bit
Bandwidth456 GB/s
Speed19 Gbps

Clocks
Base clock2670 MHz
Boost Clock2800 MHz 2670 MHz
Memory Clock2375 MHz
Power
8-pin2 1
TDP190 w
Recommended PSU650 w 600 w
Display
DisplayPort3 2.1
HDMI1 2.1a
HDCP2.3
Resolution7680 x 4320
Dimensions
Slots2.6 2
Length298 mm 272 mm
Height131 mm 115 mm
Width51 mm 40 mm
Weight959 g 779 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Intel Arc B580 Challenger OC B580 CL 12GO	2740 MHz +2.6%	2	249 mm	132 mm	41 mm
ASRock Intel Arc B580 Steel Legend OC	2800 MHz +4.9%	2.6	298 mm	131 mm	51 mm
Intel Arc B580 Limited Edition	2670 MHz	2	272 mm	115 mm	40 mm
Sparkle Intel Arc B580 TITAN OC SB580T-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 TITAN Nox OC SB580TB-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 ROC Luna OC Ultra SB580RW-12GOC	2800 MHz +4.9%	2.2	230 mm	128 mm	44 mm
Sparkle Intel Arc B580 TITAN Luna OC SB580TW-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 GUARDIAN SB580G-12G	2670 MHz	2.2	242 mm	105 mm	44 mm
GUNNIR Intel Arc B580 Photon OC	2850 MHz +6.7%	2.6	313 mm	130 mm	52 mm
Acer Nitro Intel Arc B580 OC	2670 MHz	2	268 mm	113 mm	40 mm
