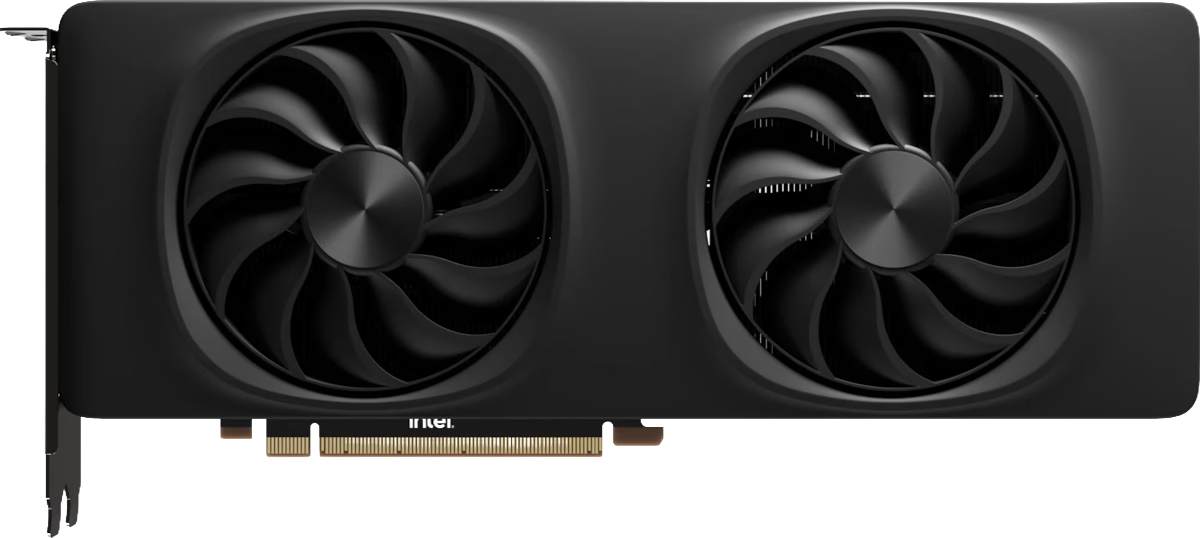

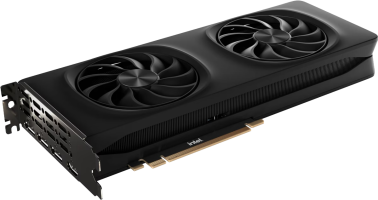

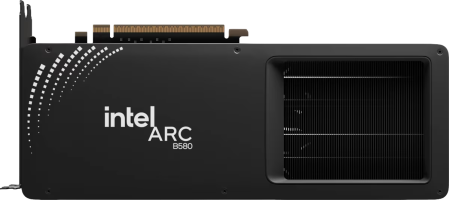

Intel Arc B580

The Arc B580 is a consumer-grade GPU from intel's Arc B series, built on the Battlemage architecture using the BMG-G21 chip. Equipped with 12 GB of GDDR6 memory on a 192-bit bus, it delivers 456.0 GB/s of bandwidth at 19.0 Gbps.

Launched on 31 Dec, 1969, the Arc B580 carried a starting price of $249.

Mine with Arc B580
Earn $0.12/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureBattlemage
GenerationArc B
InterfacePCIe 4.0 x8
Core
NameBMG-G21
FoundryTSMC
Process Node5 nm
Transistors19600 million
Die Size272 mm²
Density72.1 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs80
Tensor Cores160
RT Cores20
Memory
TechnologyGDDR6
Size12 GB
Bus192 bit
Bandwidth456 GB/s
Speed19 Gbps

Information
Platform	Consumer
Architecture	Battlemage
Generation	Arc B
Interface	PCIe 4.0 x8

Core
Name	BMG-G21
Foundry	TSMC
Process Node	5 nm
Transistors	19600 million
Die Size	272 mm²
Density	72.1 /mm²

GPU Core Config
Cores	2560
TMUs	160
ROPs	80
Tensor Cores	160
RT Cores	20

Memory
Technology	GDDR6
Size	12 GB
Bus	192 bit
Bandwidth	456 GB/s
Speed	19 Gbps

Clocks
Base clock2670 MHz
Boost Clock2670 MHz
Memory Clock2375 MHz
Power
8-pin1
TDP190 w
Recommended PSU600 w
Display
DisplayPort3 2.1
HDMI1 2.1a
HDCP2.3
Resolution7680 x 4320
Dimensions
Slots2
Length272 mm
Height115 mm
Width40 mm
Weight779 g

Clocks
Base clock	2670 MHz
Boost Clock	2670 MHz
Memory Clock	2375 MHz

Power
8-pin	1
TDP	190 w
Recommended PSU	600 w

Display
DisplayPort	3 2.1
HDMI	1 2.1a
HDCP	2.3
Resolution	7680 x 4320

Dimensions
Slots	2
Length	272 mm
Height	115 mm
Width	40 mm
Weight	779 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Intel Arc B580 Challenger OC B580 CL 12GO	2740 MHz +2.6%	2	249 mm	132 mm	41 mm
ASRock Intel Arc B580 Steel Legend OC	2800 MHz +4.9%	2.6	298 mm	131 mm	51 mm
Intel Arc B580 Limited Edition	2670 MHz	2	272 mm	115 mm	40 mm
Sparkle Intel Arc B580 TITAN OC SB580T-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 TITAN Nox OC SB580TB-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 ROC Luna OC Ultra SB580RW-12GOC	2800 MHz +4.9%	2.2	230 mm	128 mm	44 mm
Sparkle Intel Arc B580 TITAN Luna OC SB580TW-12GOC	2740 MHz +2.6%	2.2	315 mm	117 mm	44 mm
Sparkle Intel Arc B580 GUARDIAN SB580G-12G	2670 MHz	2.2	242 mm	105 mm	44 mm
GUNNIR Intel Arc B580 Photon OC	2850 MHz +6.7%	2.6	313 mm	130 mm	52 mm
Acer Nitro Intel Arc B580 OC	2670 MHz	2	268 mm	113 mm	40 mm
