Name: ASRock Radeon RX 9070 XT Challenger
Brand: ASRock
SKU: RX9070XT CL 16G

ASRock Radeon RX 9070 XT Challenger

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9070 XT > ASRock Radeon RX 9070 XT Challenger

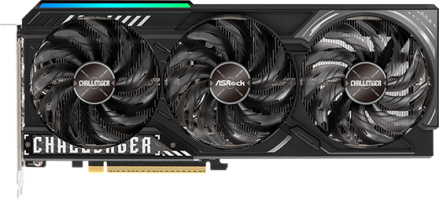

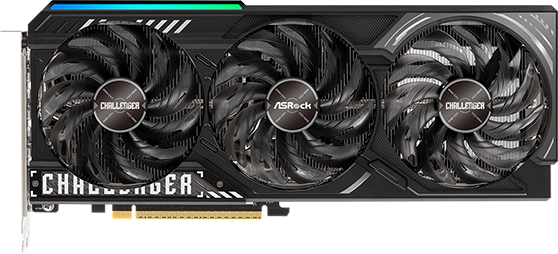

ASRock Radeon RX 9070 XT Challenger - Front

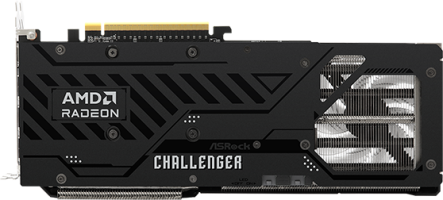

ASRock Radeon RX 9070 XT Challenger - Rear

ASRock Radeon RX 9070 XT Challenger - Side

ASRock Radeon RX 9070 XT Challenger
RX9070XT CL 16G
Available at Amazon from $729.99. Buy now!

Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 48
FoundryTSMC
Process Node4 nm
Transistors53900 million
Die Size357 mm²
Density151.0 /mm²
GPU Core Config
Cores4096
TMUs256
ROPs128
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache64 MB
Bandwidth644.608 GB/s
Speed20.144 Gbps

Clocks
Base clock1660 MHz
Game Clock2400 MHz
Boost Clock2970 MHz
Memory Clock2518 MHz
Power
8-pin2
TDP304 w
Recommended PSU750 w
Display
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.8
Length290 mm
Height123 mm
Width56 mm
Weight1038 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Radeon RX 9070 XT Taichi White OC RX9070XT TCW 16GO	3100 MHz +4.4%	3	330 mm	146 mm	61 mm
ASRock Radeon RX 9070 XT Taichi OC RX9070XT TC 16GO	3100 MHz +4.4%	3	330 mm	140 mm	61 mm
ASRock Radeon RX 9070 XT Steel Legend RX9070XT SL 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition RX9070XT MH 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Steel Legend Dark RX9070XT SLD 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Challenger RX9070XT CL 16G	2970 MHz	2.8	290 mm	123 mm	56 mm
Asus TUF Gaming Radeon RX 9070 XT COD BO7 Special Edition TUF-RX9070XT-O16G-COD-BO7	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT White OC Edition PRIME-RX9070XT-O16G-WHITE	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Asus TUF Gaming Radeon RX 9070 XT OC Edition TUF-RX9070XT-O16G-GAMING	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT OC Edition PRIME-RX9070XT-O16G	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 XT GAMING GV-R9070XTGAMING-16GD	2970 MHz	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC GV-R9070XTGAMING OC-16GD	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC ICE GV-R907XGAMINGOCICE-16GD	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte AORUS Radeon RX 9070 XT ELITE GV-R9070XTAORUS E-16GD	3100 MHz +4.4%	3	339 mm	136 mm	59 mm
PowerColor Hellhound AMD Radeon RX 9070 XT Reva Edition RX9070XT 16G-L/OC/REVA	3010 MHz +1.3%	2.9	332 mm	122 mm	57 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Backplate Special Edition RX9070XT 16G-E/OC/BP	3060 MHz +3.0%	3	340 mm	132 mm	69 mm
PowerColor Red Devil Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-E/OC/WHITE	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Limited Edition RX9070XT 16G-E/OC/LIMITED	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT RX9070XT 16G-E/OC	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-L/OC/WHITE	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Hellhound AMD Radeon RX 9070 XT RX9070XT 16G-L/OC	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Reaper AMD Radeon RX 9070 XT RX9070XT 16G-A	2970 MHz	2.1	289 mm	111 mm	41 mm
Sapphire PURE AMD Radeon RX 9070 XT OC 11348-02-20G	3010 MHz +1.3%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC Crimson Desert Edition 11348-10-20G	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC 11348-01-20G	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	66 mm
Sapphire PULSE AMD Radeon RX 9070 XT 11348-03-20G	2970 MHz	3.1	320 mm	120.3 mm	61.6 mm
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB RX-97TMARGW9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Magnetic Air Edition with RGB RX-97TMARGBA	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition with RGB RX-97TRGBBB9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC White Gaming Edition with RGB RX-97TRGBBW9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Gaming Edition with RGB RX-97TRGBBBA	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT Gaming Edition RX-97TMERCB9	2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT Gaming Edition RX-97TMERCBA	2970 MHz	7.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT White Gaming Edition RX-97TMERCWA	2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB RX-97TMARGB9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Quicksilver AMD Radeon RX 9070XT Magnetic Air Edition RX-97TMAQKB9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Magnetic Air Edition RX-97TMAQKW9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition RX-97TQICKB9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition RX-97TQICKW9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070 XT Gaming Edition RX-97TQICKBA	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition RX-97TSWF3B9	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070XT White Triple Fan Gaming Edition RX-97TSWF3W9	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070 XT Triple Fan Gaming Edition RX-97TSWF3BA	2970 MHz	3.3	325 mm	150 mm	65 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	RDNA4
Generation	RX 9000
Previous Gen	RX 7000
Interface	PCIe 5.0 x16

Core
Name	Navi 48
Foundry	TSMC
Process Node	4 nm
Transistors	53900 million
Die Size	357 mm²
Density	151.0 /mm²

Memory
Technology	GDDR6
Size	16 GB
Bus	256 bit
Infinity Cache	64 MB
Bandwidth	644.608 GB/s
Speed	20.144 Gbps

Clocks
Base clock	1660 MHz
Game Clock	2400 MHz
Boost Clock	2970 MHz
Memory Clock	2518 MHz

Power
8-pin	2
TDP	304 w
Recommended PSU	750 w

Display
DisplayPort	3 2.1a
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	2.8
Length	290 mm
Height	123 mm
Width	56 mm
Weight	1038 g
