ASRock Radeon RX 9060 Challenger
Specs, info and data
The GPU Database
Featuring 220+ GPU models — and growing.

Database > GPUs > AMD RX 9060 > ASRock Radeon RX 9060 Challenger

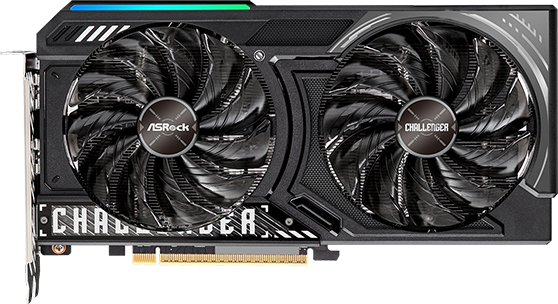

ASRock Radeon RX 9060 Challenger - Front

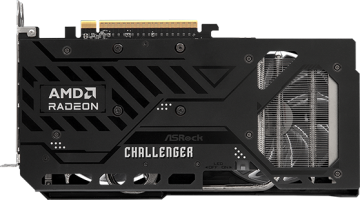

ASRock Radeon RX 9060 Challenger - Front ASRock Radeon RX 9060 Challenger - Rear ASRock Radeon RX 9060 Challenger - Side
ASRock Radeon RX 9060 Challenger
RX9060 CL 8G
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth432 GB/s
Speed18 Gbps
Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 44
FoundryTSMC
Process Node4 nm
Transistors29700 million
Die Size199 mm²
Density149.2 /mm²
GPU Core Config
Cores1792
TMUs112
ROPs64
RT Cores28
Clocks
Base clock1700 MHz
Game Clock2400 MHz
Boost Clock2990 MHz
Memory Clock2518 MHz
Power
8-pin1
Recommended PSU500 w
Display
DisplayPort2 2.1a
HDMI1 2.1b
Dimensions
Slots2.1
Length249 mm
Height132 mm
Width41 mm

Models
GPUBoost ClockSlotsLengthHeightWidth
2990 MHz2.1249 mm132 mm41 mm
