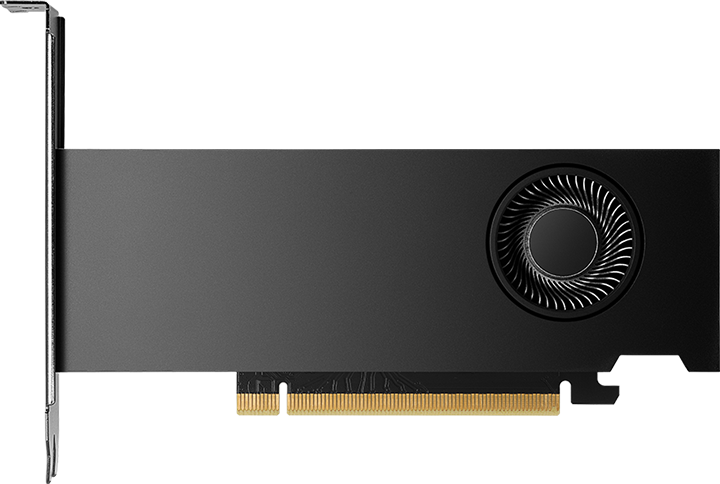

NVIDIA RTX 2000 Ada

The RTX 2000 Ada is a workstation-grade GPU from nvidia's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD107 chip. Equipped with 16 GB of GDDR6 memory on a 128-bit bus, it delivers 256.0 GB/s of bandwidth at 16.0 Gbps.

Launched on 11 Feb, 2024, the RTX 2000 Ada carried a starting price of $649.

Rent RTX 2000 Ada
Cost $0.07/h*
Vast
* Median price

Information
PlatformWorkstation
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x8
Core
NameAD107
FoundryTSMC
Process Node5 nm
Transistors18900 million
Die Size159 mm²
Density118.9 /mm²
GPU Core Config
Cores2816
TMUs88
ROPs48
SMs22
Tensor Cores88
RT Cores22
Memory
TechnologyGDDR6
Size16 GB
Bus128 bit
Bandwidth256 GB/s
Speed16 Gbps

Information
Platform	Workstation
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x8

Core
Name	AD107
Foundry	TSMC
Process Node	5 nm
Transistors	18900 million
Die Size	159 mm²
Density	118.9 /mm²

GPU Core Config
Cores	2816
TMUs	88
ROPs	48
SMs	22
Tensor Cores	88
RT Cores	22

Memory
Technology	GDDR6
Size	16 GB
Bus	128 bit
Bandwidth	256 GB/s
Speed	16 Gbps

Clocks
Base clock1620 MHz
Boost Clock2130 MHz
Memory Clock2000 MHz
Power
TDP70 w
Recommended PSU500 w
Display

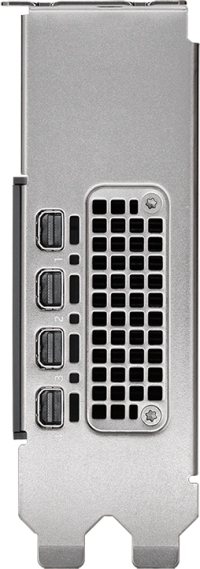

Mini DisplayPort4
Dimensions
Slots2
Length168 mm
Height69 mm
Width40 mm

Clocks
Base clock	1620 MHz
Boost Clock	2130 MHz
Memory Clock	2000 MHz

Power
TDP	70 w
Recommended PSU	500 w

Display
Mini DisplayPort	4

Dimensions
Slots	2
Length	168 mm
Height	69 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX 2000 Ada VCNRTX2000ADA-PB	2130 MHz	2	168 mm	69 mm	40 mm
